Cast Nylon Sheets Manufacturer in India
At Vansh Global | Krishna All Plastic, we manufacture and supply premium-quality Cast Nylon Sheets that are engineered to deliver exceptional performance in demanding industrial applications. Cast Nylon is widely preferred over conventional extruded nylon due to its superior molecular structure, resulting in enhanced mechanical strength, wear resistance, dimensional stability, and long-term durability.
With excellent load-bearing capabilities, low friction properties, and outstanding resistance to abrasion, Cast Nylon has become a preferred material for manufacturing bearings, gears, bushes, rollers, wear pads, and various structural components across multiple industries.
With decades of industry expertise, we provide Cast Nylon Rods and Sheets in various sizes, thicknesses, and custom specifications to meet the diverse requirements of industries such as engineering, textile, automotive, food processing, material handling, chemical processing, paper mills, and manufacturing.



Products We Provide
Contact Info
Address:
Vansh Global | Krishna All Plastic Shop No. 1, Gurjar Estate, Near Keval Kanta, Rakhiyal, Ahmedabad – 380023
+(91) 98987 62115
24/7 Support for Your Business
Info File
Quality Assurance
Availability of Cast Nylon Products

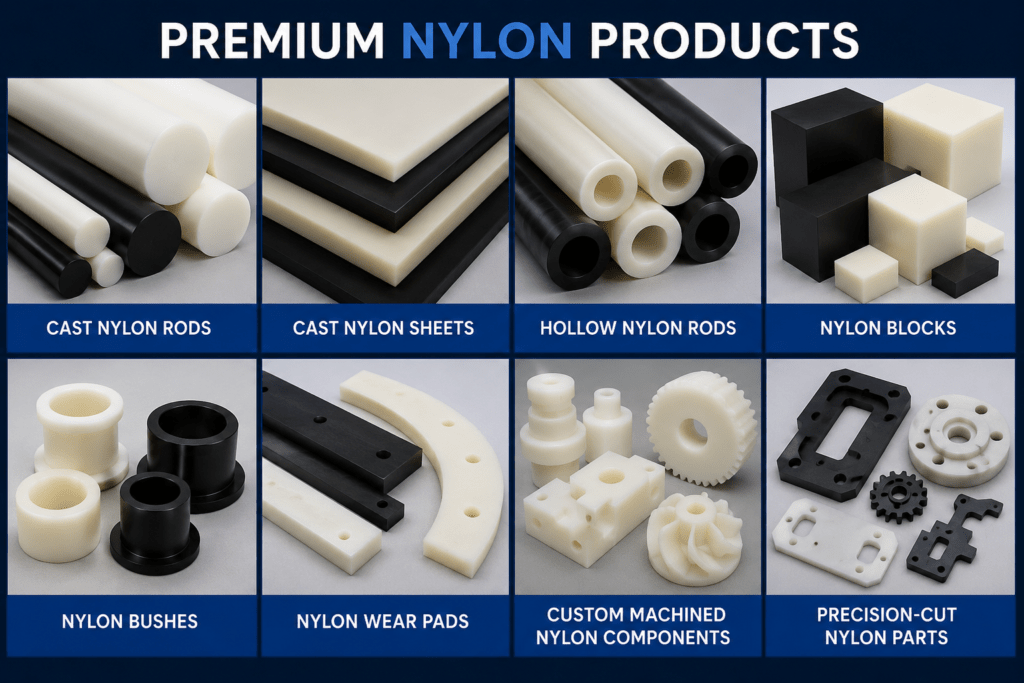

At Vansh Global | Krishna All Plastic, Cast Nylon is available in a wide range of standard and custom-engineered forms, including:
- Cast Nylon Rods
- Cast Nylon Sheets
- Hollow Nylon Rods
- Nylon Blocks
- Nylon Bushes
- Nylon Wear Pads
- Custom Machined Nylon Components
- Precision-Cut Nylon Parts
We maintain ready stock of standard sizes while also offering customized dimensions and machined components according to customer drawings and application requirements.
Technical Properties of Cast Nylon
| Technical Property | Value |
|---|---|
| Melting Temperature | 215°C |
| Density | 1.14 – 1.16 g/cm³ |
| Tensile Strength at Yield | 750 – 850 kg/cm² |
| Elongation at Yield | 12 – 13% |
| E-Modulus | 24,000 – 26,300 kg/cm² |
| Hardness (Rockwell at 23°C) | R 107 – 112 |
| Durometer (at 23°C) | D 82 – 89 |
| Temperature of Deflection | 80°C |
| Compression Strength at Yield | 940 kg/cm² |
| Notched Impact Strength | 5 – 11 kg·cm/cm |
| Impact Strength at +20°C | 10 kg·cm/cm |
| Water Absorption at 20°C | 0.3 – 3% |
| Flexural Strength | 1000 – 1350 kg/cm² |
| Resistance to Heat (Continuous) | In Air: 80°C |
| Resistance to Heat (Continuous) | In Water: 100°C |
| Resistance to Heat (Continuous) | In Oil: 140°C |
| Effect of Weak Acids | Resistant |
| Effect of Strong Acids | Attacked |
| Effect of Weak Alkalies | None |
| Effect of Strong Alkalies | None |
| Effect of Organic Solvents | Resistant to Common Solvents |
